URO-MAX series, Urology C-Arm Table

SKU:
UROMAX
Write a Review

Call for Pricing and Options

Condition:
New
Table Dimensions:
55"L x 24”W
Tabletop Material:
Carbon fiber skin/foam core with integral facial cut-out
Tabletop:
55”L x 24”W x 1.62”T
Castors:
5" Castors have full swivel & wheel lock
Radiolucent Area:
27”L x 24”W unobstructed
Mattress:
2" thick (5 cm)
Base:
H Shaped steel base 51"L x 26"W with Epoxy Finish
Patient Capacity:
500lb (227kg)
Patient Straps:
2
Foot Control:
Activates all motion
Protection:
Bellows to cover and protect table motor components
Power:
Twist-lock removeable power cord
Accessory Attachment:
Side Rail System
Safety:
Emergency Stop Switch
Availability:*** Shown with Optional Accessory package (Stirrups, Clamps and Drain Loop and Bag) ***

Durability

Ease of Use

Good Quality

×
URO-MAX series C-Arm Table
URO-MAX series C-Arm Table
URO-MAX series C-Arm Table
URO-MAX series C-Arm Table
URO-MAX series C-Arm Table
URO-MAX series C-Arm Table
URO-MAX series C-Arm Table
URO-MAX series C-Arm Table

Product Overview

The UroMax surgical table series is intended to be used with mobile x-ray units for minimally invasive procedures on patients as large as 500 lbs.
We kept versatility in mind when designing our UroMAX series urology c-arm tables. You can customize your purchase to fit your needs.

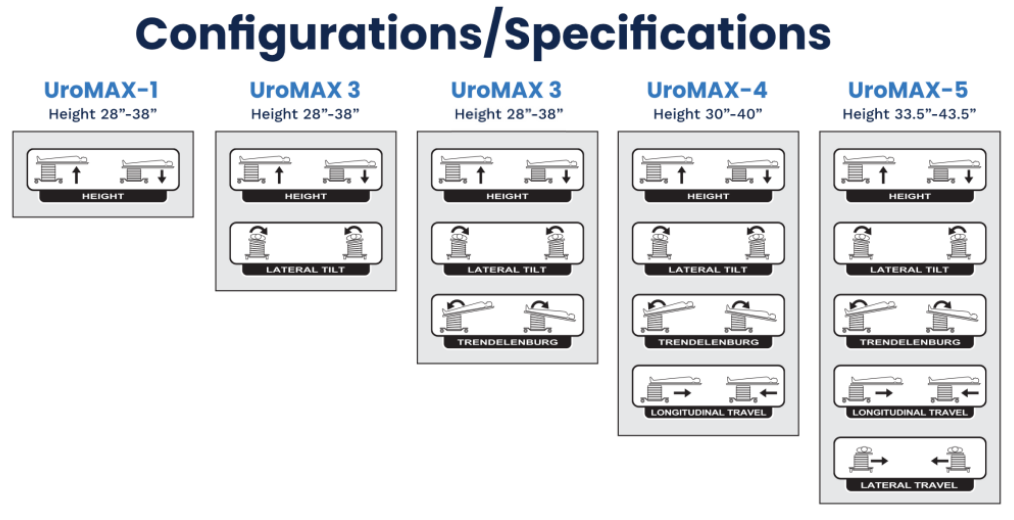

1. Choose your model: Choose between the 5 UroMAX models below. (The UroMAX-4 is our most popular option!)

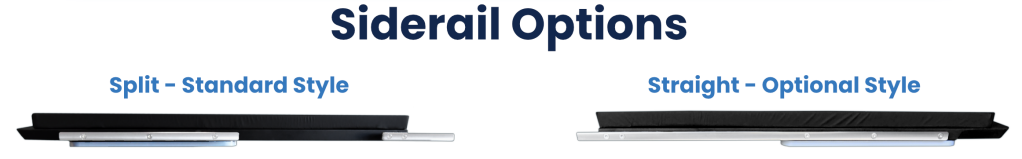

2. Choose your side rails: We offer a “split” side rail option which many choose when performing lithotomy procedures. You can also choose side rails which run the length of the table

3. Add on your extension: Just doing Urology procedures? You may only need our leg extension which holds up to 250 lbs. Sharing your table? We also offer an upper body extension which holds up to 500 lbs and has a facial cutout allowing the user to perform prone procedures.

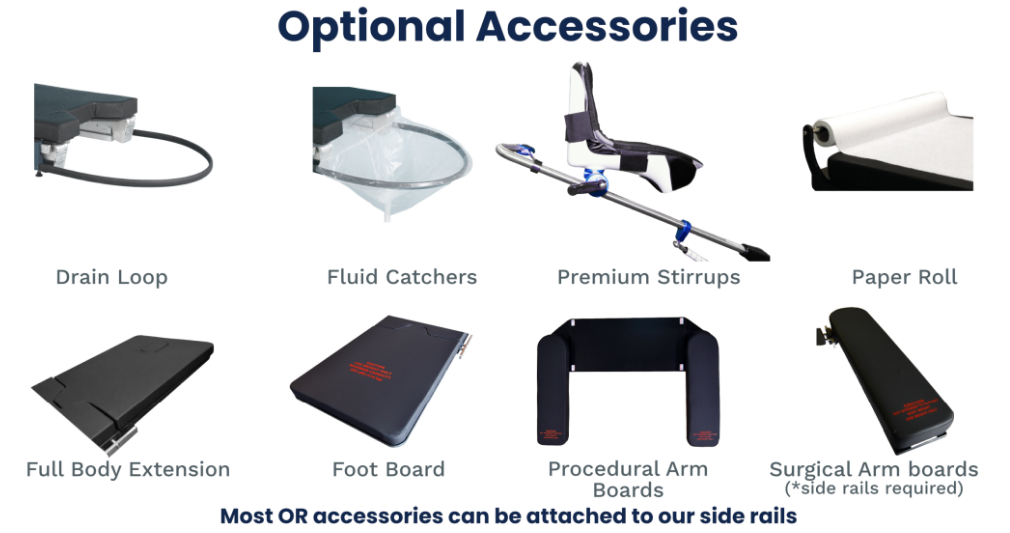

4. Choose your optional accessories. Our siderails are a standard size and fit most accessories. We also  offer a package containing stirrups, a drain loop, and 10 drain bags. You may also opt for some armboards. See our accessories section for more accessories.

Our UroMAX urology c-arm tables offer flexibility and reliability.
They feature a cantilevered carbon fiber radiolucent top allowing for full fluoroscopic visualization and unobstructed c-arm positioning.  Also, with the addition of the upper body extension, the UroMAX can be used for pain management, GI and other c-arm guided procedures.







UROSPECS

Warranty Information

4-Year Limited Warranty/4- year warranty on non-electrical parts and 1-year warranty on electrical components. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables Incorporated has the right to assess if mis-use has occurred. In the case of mis-use the warranty is void.
