Understanding ultrasound transducer types is an essential first step for anyone beginning their journey into diagnostic imaging. These devices bridge sound waves and the body, sending and receiving signals that create real-time images of internal organs, tissues, and blood flow. Since different probes are designed for unique applications, learning about ultrasonic transducer classification helps beginners choose the right tool for specific medical or research needs.

The growing demand for ultrasound technology underscores the importance of this knowledge. The global ultrasound devices market reached USD 8.4 billion in 2023 and likely to grow at a 4.5% CAGR through 2030, highlighting sustained demand for probes. Whether for abdominal scans, cardiac imaging, or vascular assessments, each transducer type plays a role in accurate diagnosis. This guide simplifies the choices, giving you a clear foundation to select confidently.

How Ultrasound Transducers Work

To know why choosing the right probe matters, it helps first to see how transducers generate and process ultrasound signals. Their inner workings reveal why different designs suit different applications.

Piezoelectric Principle

The piezoelectric crystal, commonly lead zirconate titanate (PZT), is at the core of every probe. These crystals convert electrical signals into mechanical vibrations, producing sound waves that travel into the body. When echoes return, the same crystals reverse the process, turning vibrations back into electrical signals for image formation. This principle forms the basis of ultrasonic transducer classification, helping distinguish between devices such as the linear array probe, ideal for vascular imaging, and the convex curvilinear transducer, often used for abdominal scans. In 2022, the transducer/probe segment held the largest ultrasound market share at over 35%, emphasizing probe importance in revenue.

Transducer Components

A modern probe includes several layers working in harmony. The active layer contains piezoelectric material that generates and receives sound waves. Matching layers help efficiently transmit energy into the body by reducing impedance differences. Behind them, the backing layer absorbs excess vibrations, improving image clarity. A protective lens focuses sound waves, while kerfs, which means tiny cuts between elements, reduce cross-talk in array probes. These components determine the performance of both linear array probes and convex curvilinear transducers, with their arrangement defining where they fit in ultrasonic transducer classification. These design features explain why certain probes are favored for specific imaging tasks, from vascular diagnostics to obstetric applications.

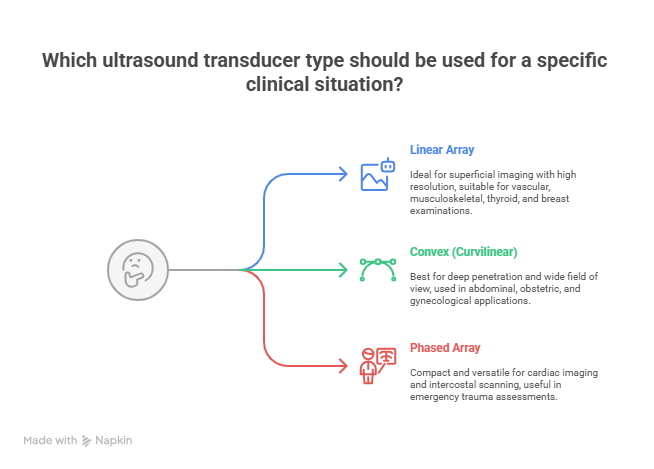

Main Types of Transducers

Different clinical situations call for specific probe designs. By learning the strengths of each, beginners can know why ultrasound exams rely on various transducer shapes and frequencies.

Linear Array Transducer

A linear array probe has a flat footprint and typically operates at higher frequencies, often between 7 and 15 MHz. This design provides excellent resolution for superficial imaging, making it ideal for vascular, musculoskeletal, thyroid, and breast examinations. Because the sound beams are parallel, the image is rectangular, offering a detailed visualization of shallow structures. The trade-off is reduced penetration depth compared to lower-frequency probes. For clinicians and beginners, linear array probes are the go-to choice for surface-level anatomy where clarity is essential, particularly when evaluating tendons, nerves, or blood vessels with Doppler applications.

Convex (Curvilinear) Transducer

The convex curvilinear transducer features a curved footprint and operates at lower frequencies, generally 2–7 MHz, which allows deeper sound penetration. This makes it suitable for abdominal scans, obstetric imaging, and gynecological applications. The curved design creates a wider field of view, producing an arc-shaped image covering more depth of anatomy than a linear probe. While resolution decreases compared to higher-frequency probes, the ability to assess organs like the liver, kidneys, and uterus outweighs that limitation. Beginners often find this probe associated with general-purpose exams, especially where depth and a broad perspective are required for diagnosis.

Phased Array (Sector) Transducer

A phased array ultrasound probe uses a small, compact footprint ideal for navigating between ribs or working in areas with limited access. It emits sound waves sequentially across its crystal elements, producing a sector-shaped image that starts narrow and widens with depth. With frequencies typically in the 2–5 MHz range, it is the standard for cardiac imaging, intercostal scanning, and sometimes emergency trauma assessments. Although image resolution is lower than linear probes, the ability to visualize the heart’s chambers and valves in motion makes it indispensable. Phased array probes represent the gateway to echocardiography and advanced critical care imaging for beginners.

Other Specialized Transducers

Beyond the main categories, there are specialized probes designed for targeted applications. These tools expand the reach of ultrasound by adapting the same piezoelectric crystals into unique shapes and footprints for specific clinical needs.

Endocavitary Transducer

An endocavitary ultrasound probe is designed for internal imaging, most often through the vaginal or rectal cavity. With frequencies around 5–9 MHz, it delivers high-resolution images of structures such as the uterus, ovaries, and prostate. Its elongated shape allows closer access to internal organs, reducing the distance sound waves travel and improving clarity. Commonly used in obstetrics and gynecology for early pregnancy evaluation or fertility assessments, it also plays a vital role in urology. Despite its narrow field of view, the detail it provides makes it an essential tool in advanced diagnostic practice.

Transesophageal (TEE) Probe

A transesophageal probe is specifically designed for cardiac imaging through the esophagus. By placing the probe close to the heart, clinicians gain clear, high-resolution images of cardiac chambers, valves, and blood flow patterns that might be difficult to capture transthoracically. Operating with piezoelectric crystals similar to other probes, the TEE bypasses interference from lungs and ribs, delivering precise information for surgical planning and intraoperative monitoring. While it requires sedation or anesthesia, its diagnostic value in cardiology is unmatched. This makes it indispensable for assessing complex heart conditions and guiding procedures such as valve repairs or replacements.

Hockey Stick and Pencil Probes

Hockey stick and pencil probes are small, specialized devices tailored for superficial imaging. Their compact design and high-frequency operation, often above 10 MHz, make them perfect for evaluating tendons, nerves, and small parts like fingers or superficial lymph nodes. The angled footprint of the hockey stick probe allows easier access to tight anatomical spaces, while pencil probes are commonly used in vascular studies, especially for intraoperative blood flow assessment. Like other transducers, they rely on piezoelectric crystals to convert electrical signals into ultrasound waves. These niche probes ensure precise imaging where conventional probes may not physically fit or provide sufficient resolution.

Emerging Transducer Technologies

While traditional probes remain the backbone of medical imaging, rapid innovation reshapes how clinicians use ultrasound. From advanced materials to wireless formats, these new solutions are making imaging more portable, accessible, and precise.

CMUT vs PZT

Conventional probes rely on piezoelectric crystals (PZT) to generate and detect sound waves, but capacitive micromachined ultrasonic transducers (CMUTs) are gaining ground. CMUTs are built using silicon-based microfabrication, offering broader bandwidth and improved integration with electronics. Compared to PZT, they can achieve higher sensitivity while reducing probe size and cost. They are particularly valuable when balancing high-frequency ultrasound for shallow imaging with low-frequency ultrasound for deeper penetration, making them versatile across applications. For beginners, the shift toward CMUT represents a push toward smaller, more affordable, and potentially more reliable probes in diverse environments.

Wireless and Handheld Probes

The rise of wireless ultrasound devices is one of the most significant trends in modern imaging. These probes connect Bluetooth or Wi-Fi to smartphones and tablets, eliminating bulky consoles and cables. Compact and user-friendly, they support POCUS ultrasound probe (point-of-care ultrasound) applications in emergency rooms, ambulances, and rural clinics. Cable-free designs improve mobility, sterilization, and convenience, which are particularly important in critical care or infectious disease scenarios. With clinicians now able to carry an ultrasound in their pocket, handheld devices are redefining accessibility and patient care efficiency worldwide.

Wearable and UHF Probes

Another breakthrough is the wearable ultrasound patch, designed for continuous monitoring. These patches can adhere to the skin and provide real-time imaging or physiological tracking without a handheld probe. They are especially promising for cardiac monitoring, respiratory tracking, and long-term patient observation. Meanwhile, ultra-high-frequency (UHF) probes operate at 30 MHz and beyond. It opens new doors for dermatology, ophthalmology, and detailed musculoskeletal imaging. While penetration depth is limited at such high frequencies, the exceptional resolution allows visualization of minute structures that standard probes cannot capture.

The Future Outlook

Emerging transducer innovations are expanding ultrasound beyond hospital walls. By combining miniaturization, wireless connectivity, and continuous monitoring, these devices make imaging faster, more precise, and more accessible. Whether it’s CMUT replacing PZT, handheld probes driving POCUS, or wearable ultrasound patches enabling remote care, the future is moving toward flexible, patient-centered imaging solutions. Understanding these trends is essential for beginners exploring the field, as today’s emerging technologies are quickly becoming tomorrow’s standard in diagnostic and therapeutic applications.

How to Choose the Right Transducer

Selecting the correct probe depends on clinical needs, imaging depth, and the type of anatomy being examined. Beginners should balance resolution, penetration, and device compatibility before deciding.

Application-Driven Selection

Every probe has a purpose. A linear array probe excels at vascular, thyroid, and musculoskeletal imaging, where shallow structures require high resolution. A convex curvilinear transducer is better for abdominal or obstetric scans, where deeper penetration and a wide field of view are needed. Meanwhile, a phased array ultrasound probe is chosen for cardiac imaging due to its small footprint and ability to work between ribs. Specialized tools like the endocavitary ultrasound or transesophageal probe serve niche diagnostic roles. Matching the probe to the application ensures accurate and efficient exams.

Frequency vs Penetration

Choosing between high-frequency ultrasound and low-frequency ultrasound involves a trade-off. High-frequency probes (above 7 MHz) provide superb resolution but limited depth, making them suitable for superficial imaging. Low-frequency probes (2–5 MHz) penetrate deeper, which is ideal for abdominal and cardiac applications, though image detail is reduced. Based on the diagnostic goal, beginners should prioritize what matters most.

Compatibility and System Requirements

Not every probe works with every machine. Ensure the device supports the required POCUS ultrasound probe, wireless ultrasound, or future-ready options like a wearable ultrasound patch. Checking connector type, software compatibility, and system updates is crucial. Probes built with piezoelectric crystals or CMUT technology may also demand specific platforms.

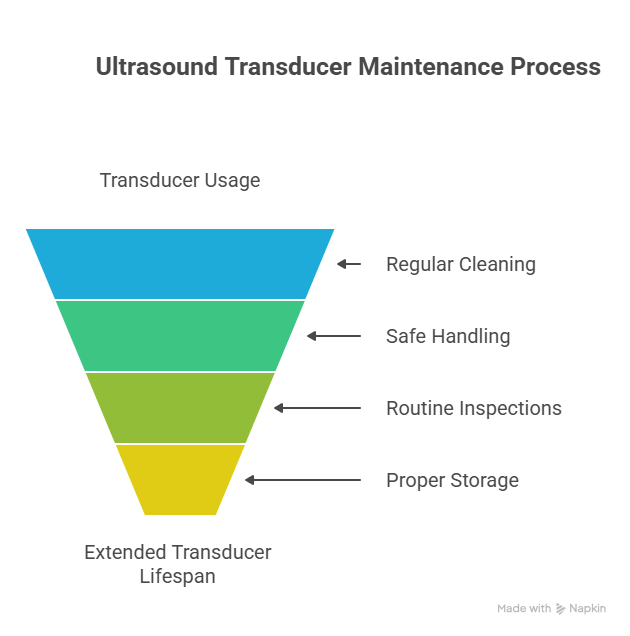

Maintenance and Care

The following are basic maintenance procedures to follow for any kind of ultrasound transducer:

Regular Cleaning

Proper cleaning is essential to keep up the performance of your ultrasound transducer. Use approved disinfectants and follow the manufacturer’s guidelines to prevent damage to the lens and housing. Avoid abrasive materials as well as it may scratch the surface.

Safe Handling

Always handle your transducer with care. Do not drop or bend the cable excessively, which can compromise image quality and shorten its lifespan. Use protective covers when transporting the device between rooms or facilities.

Routine Inspections

Conduct regular checks for cracks, frayed cables, or loose connectors. Finding out wear and tear early on allows for timely repairs and helps avoid costly replacements.

Storage Practices

Store the transducer in a clean, dry environment when not in use. Keep at bay from extreme temperatures and direct sunlight to preserve its sensitivity and accuracy over time.

Wrapping up

Choosing the right ultrasound transducer depends on your clinical needs, imaging depth, and patient population. Linear, convex, and phased array probes serve distinct purposes, while specialized options expand diagnostic capabilities further. Understanding frequency, beam shape, and applications ensures accurate imaging and better patient outcomes. Proper maintenance and care also extend the life of your equipment, making your investment worthwhile.

Looking to upgrade or maintain your ultrasound probes? Check out The Biomed Guys’ trusted selection of high-quality transducers and accessories and reliable solutions designed to keep your practice running smoothly and deliver precise diagnostic results.

FAQ

1. What are the different types of transducers for ultrasound?

Ultrasound transducers are classified by footprint and crystal arrangement. The most common types are linear, convex (curvilinear), and phased array probes. They differ in frequency, beam shape, and imaging depth, making them suitable for various vascular, abdominal, obstetric, and cardiac imaging applications.

2. What are the three main types of ultrasound probes?

The three main probe types are linear, convex (curvilinear), and phased array. Linear probes provide high-frequency, superficial imaging; convex probes offer wider, lower-frequency imaging for abdominal and OBGYN use; phased array probes deliver low-frequency, small-sector beams, ideal for cardiac imaging through narrow acoustic windows.

3. What are the different types of transducers?

Beyond linear, convex, and phased arrays, specialized probes exist for specific applications. These include endocavitary probes for gynecological and urological exams, transesophageal probes for cardiac imaging, hockey stick probes for small parts or intraoperative use, and pencil probes for continuous-wave Doppler vascular studies.

4. What are the classifications of ultrasonic transducers?

Ultrasonic transducers are classified by crystal arrangement (linear, curvilinear, phased), dimensionality (1D, 1.5D, 2D arrays), and clinical application. Categories include standard surface probes, intracavitary probes, and advanced 3D/4D volumetric transducers used in obstetrics and cardiology, each optimized for different imaging depth, resolution, and diagnostic needs.

5. Which of the following is most commonly used in ultrasound transducers?

The most common material in ultrasound transducers is piezoelectric crystals, specifically lead zirconate titanate (PZT). These crystals generate and receive ultrasound waves by turning electrical energy to sound energy and vice versa, ensuring accurate image production across various medical applications.

6. What are the three main types of ultrasound?

The three main ultrasound modes are B-mode, Doppler, and M-mode. B-mode provides two-dimensional grayscale imaging; Doppler measures blood flow and velocity; M-mode captures motion over time, especially in cardiac imaging. These imaging modes differ from probe types but are equally essential for diagnostic ultrasound.
