The Toco Transducer is a small yet crucial device that helps monitor labor's progress. Also known as a tocodynamometer, this innovative tool tracks uterine contractions in real-time, providing valuable insights into the intensity and frequency of these contractions during childbirth. By placing the transducer on the abdomen, healthcare professionals can assess the strength and duration of contractions, which is vital for determining the stage of labor and making informed decisions for the safety of both mother and baby. With its non-invasive design, the Toco Transducer allows continuous monitoring without interrupting the natural flow of labor, offering reassurance to patients and doctors. In this article, we’ll learn how this device plays a pivotal role in tracking the miracle of birth, ensuring that both mother and baby are closely monitored throughout the labor process.

What Is a TOCO Transducer?

A Toco Transducer, also known as a tocodynamometer, is an essential tool in electronic fetal monitoring (EFM). Measure uterine contractions during labor by detecting abdominal wall changes as the uterus contracts. This non-invasive device is key in ensuring both maternal and fetal well-being during childbirth. The toco transducer came into existence in the mid-20th century, evolving alongside electronic fetal monitoring technology advancements. Today, EFM using a toco transducer is used annually in over 85% of U.S. live births, underscoring its widespread use in obstetrics (ACOG). With approximately 3.4 million births in the U.S. each year undergoing continuous EFM, this is critical in monitoring labor progress and detecting potential complications. The toco transducer provides vital information for healthcare providers through real-time contraction monitoring, ensuring safer delivery outcomes.

How Does a TOCO Transducer Work?

The Toco Transducer is vital in electronic fetal monitoring (EFM) by tracking uterine contraction time. Using a pressure-sensitive mechanism, the device detects changes in the abdominal wall caused by contractions. When converted into readable data, these signals provide essential insights into contraction frequency, duration, and resting tone. Let us study the key components and how they work together to monitor labor progress.

Components and Mechanism

The Toco Transducer comprises several key components- a sensor, a pressure-sensitive plunger or button, and electronics. The sensor, typically placed on the abdomen, detects pressure changes during uterine contractions. The plunger mechanism presses against the skin, while the electronics convert the pressure data into a digital signal. This signal is sent to the monitoring system, which correlates the contraction frequency and resting tone with the fetal heart rate, offering a comprehensive picture of labor.

What does it measure?

The Toco Transducer measures three essential aspects- contraction frequency, duration, and resting tone. Contraction frequency refers to how often the uterine muscles contract, while duration tracks how long each contraction lasts. Resting tone measures the baseline tension in the uterus between contractions. Combined, these measurements provide vital information about the labor process, aiding clinicians in decision-making. EFM, including using the Doppler transducer for fetal heart rate, offers real-time insights into maternal and fetal well-being.

External vs Internal Monitoring

Healthcare providers rely on two primary methods when monitoring labor: external monitoring using a Toco Transducer and internal monitoring with an Intrauterine Pressure Catheter (IUPC). Both techniques assess uterine contractions, but each has distinct advantages and limitations. The Toco Transducer is a non-invasive method that provides real-time data on contraction frequency, duration, and resting tone. However, it cannot measure contraction intensity, which limits its effectiveness in clinical situations. In contrast, the IUPC offers more precise measurements, including contraction intensity, through direct pressure readings inside the uterus. Knowing the differences lets healthcare providers make informed decisions regarding the most suitable monitoring method for each patient’s needs.

Intrauterine Pressure Catheter (IUPC)

An Intrauterine Pressure Catheter (IUPC) is a more invasive device that continuously monitors uterine contractions. Unlike the Toco Transducer, which can only measure contraction frequency and duration, the IUPC directly measures the pressure inside the uterus, providing more detailed data on contraction intensity. One significant benefit of the IUPC is the ability to measure Montevideo Units, a numerical scale used to quantify the intensity of uterine contractions. This feature allows for more accurate assessment of labor progression, particularly when evaluating the effectiveness of contractions during the second stage of labor.

However, the IUPC does have some drawbacks. It is invasive, requiring the placement of a catheter into the uterus, which carries risks such as infection, injury, and rupture of membranes. Furthermore, external toco monitoring cannot measure contraction intensity, which sets the stage for the IUPC benefits in cases where contraction strength needs to be precisely assessed. While the Toco Transducer remains an essential tool for electronic fetal monitoring (EFM), the IUPC may be preferred in more complex situations where detailed contraction data is crucial for decision-making.

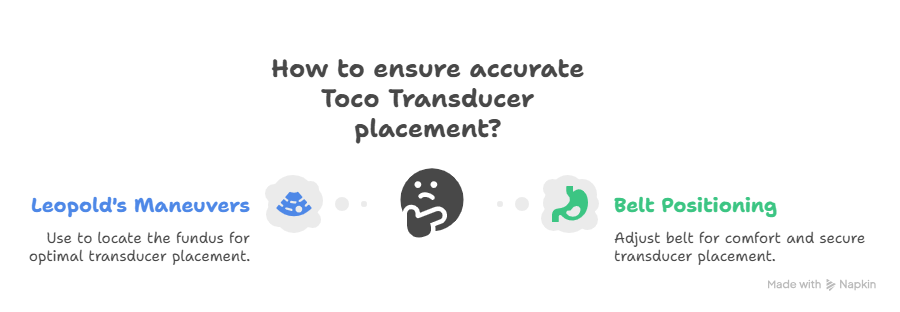

TOCO Transducer Placement- Best Practices

Proper placement of the Toco Transducer is essential for accurate labor monitoring. The device must be positioned correctly on the abdomen to ensure consistent readings of uterine contractions. Ensuring that the Toco Transducer is placed in the optimal location improves the accuracy of contraction frequency and duration data and helps monitor the resting tone effectively. Let’s find out the best practices for placing the Toco Transducer and securing it to avoid monitoring process disruptions.

Using Leopold’s Maneuvers

Leopold’s maneuvers are a set of techniques healthcare providers use to locate the fundus and determine the best position for the Toco Transducer. By palpating the abdomen, the provider can assess the fetus’s position and find the fundus, the upper part of the uterus where contractions are most prominent. Once the fundus is identified, the transducer can be placed directly over it to ensure accurate measurement of uterine contractions. These maneuvers are essential in providing precise, consistent data for labor monitoring, as improper placement can lead to inaccurate readings or missed contractions.

Belt Positioning and Tightness

Proper belt positioning and tightness are crucial for ensuring the Toco Transducer stays in place during labor monitoring. The belt should be positioned around the patient's abdomen to secure the transducer over the fundus while allowing it to stay comfortably in place without causing discomfort. The belt should be snug but not too tight, as excessive pressure can interfere with the transducer’s ability to track uterine contractions effectively. Regular adjustments may be needed as the patient moves or as labor progresses, ensuring that the Toco Transducer remains in the correct position for consistent, reliable readings.

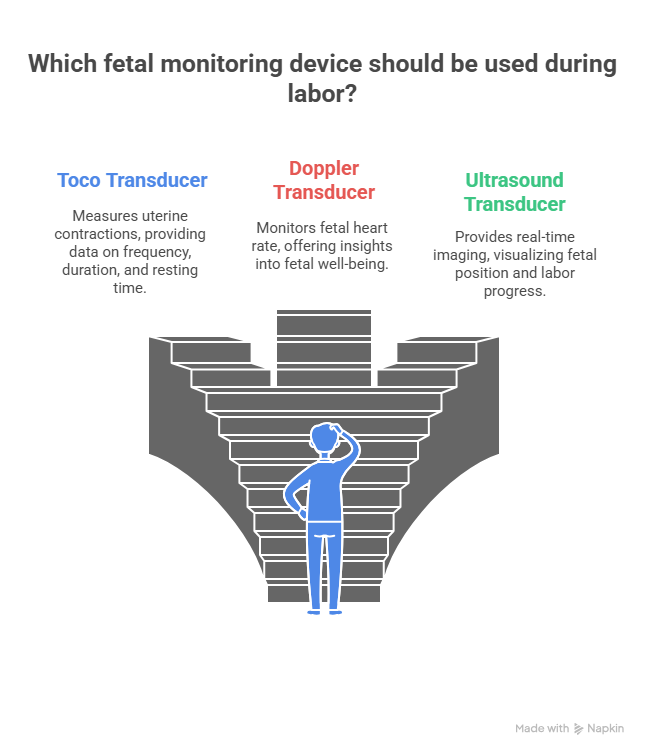

TOCO vs Doppler vs Ultrasound Transducer

In electronic fetal monitoring (EFM), the standard monitoring devices—Toco Transducer, Doppler, and Ultrasound Transducer—serve distinct roles in monitoring maternal and fetal well-being. The Toco Transducer primarily tracks uterine contractions, measuring contraction frequency, duration, and resting time. On the other hand, the Doppler transducer monitors the fetal heart rate, providing critical data on fetal well-being during labor. Meanwhile, the Ultrasound Transducer offers real-time imaging, enabling the visualization of fetal position and other key factors that impact labor progress. Each device complements the others, offering comprehensive insights into the labor process.

Interpreting TOCO Readings

Accurate interpretation of TOCO readings is essential for effective labor monitoring. By analyzing the baseline tone, contraction peaks, and the overall pattern, healthcare providers can gauge the intensity and progression of labor. The baseline tone reflects the resting tension of the uterus between contractions, while contraction peaks help measure the strength of contractions. Understanding the overall contraction pattern—whether regular or irregular—provides insight into the labor process, helping to determine if labor is progressing as expected. This data is crucial in making informed decisions on pain management, fetal health, and the need for medical interventions.

Identifying True Contractions vs Braxton Hicks

Distinguishing between true contractions and Braxton Hicks contractions is vital during labor monitoring. Braxton Hicks, or "false labor," are irregular, generally painless contractions that can occur throughout pregnancy. Unlike true contractions, which are progressively stronger and closer together, Braxton Hicks contractions tend to be sporadic and do not lead to cervical dilation. In contrast, true contractions exhibit increasing contraction intensity and regularity, signaling the onset of active labor. By analyzing the contraction pattern and evaluating the changes in intensity, healthcare providers can differentiate between the two, ensuring that labor interventions are appropriately timed.

Common Models and Brands

Several prominent brands provide advanced devices to track uterine contractions, fetal heart rate, and maternal well-being. Let's examine some of the most popular models and their features.

Philips Avalon

The Philips Avalon series is known for its reliable and precise labor monitoring. These monitors have external and internal monitoring capabilities, offering flexibility during labor. The Avalon models feature intuitive touch-screen interfaces, customizable reports, and real-time data analysis. Their wireless connectivity options make them ideal for modern labor rooms where mobility and easy access to patient data are essential.

GE Corometrics

GE Corometrics monitors are widely used in labor monitoring for their accuracy and ease of use. Known for their contraction intensity and fetal heart rate tracking, these monitors offer both digital and analog outputs, ensuring that clinicians have precise data at hand. The Corometrics monitors are also noted for their long battery life and ergonomic design, making them practical for hospital settings and home births where continuous monitoring is essential.

Edan

Edan offers high-quality fetal monitoring systems with cutting-edge features. Their monitors are compact and compatible with Doppler and Toco Transducers, ensuring complete uterine contractions and fetal heart rate monitoring. Edan models provide easy integration with hospital networks and can store patient data for future reference, making them ideal for long-term monitoring and analysis. These devices are particularly praised for their affordability without compromising on performance.

Using TOCO in Clinical Practice

The Toco Transducer is critical in labor monitoring, providing real-time data on uterine contractions and resting tone. However, various factors can impact accurate tracking, such as patient movement, belt shifts, or obesity. Troubleshooting these artifacts is essential for ensuring reliable readings. Understanding the best practices and addressing contraction frequency and intensity monitoring challenges can improve clinical decision-making during labor.

Dealing with Movement and Belt Shifts

Patient movement and belt shifts can cause Toco Transducer readings to become unreliable, leading to inaccurate labor monitoring. To minimize artifacts, ensure the belt is securely fastened and adjusted for comfort while maintaining snugness to prevent slippage. If the patient shifts positions, reposition the transducer to maintain contact with the fundus. In cases of obesity, increased abdominal tissue can make accurate placement challenging, so clinicians may need to apply more pressure or use an alternative transducer to ensure precise data on uterine contractions.

Frequently Asked Questions

1. What does a TOCO transducer do?

A Toco Transducer monitors uterine activity by detecting and recording the frequency and duration of contractions. It uses a pressure-sensitive sensor placed on the maternal abdomen to provide real-time data on contraction timing, allowing healthcare providers to track labor progression.

2. What is the difference between a TOCO and an ultrasound transducer?

A Toco Transducer measures uterine contractions, while an ultrasound (Doppler) transducer measures the fetal heart rate using Doppler ultrasound. These devices complement each other, offering comprehensive fetal monitoring to track maternal and fetal well-being during labor.

3. What is the difference between a Toco and a Doppler?

A Toco Transducer tracks the timing of uterine contractions, whereas a Doppler Transducer monitors the fetal heart rate. Both devices are used together for complete labor monitoring, with the Toco focusing on maternal contraction data and the Doppler providing information on fetal well-being.

4. Where should a TOCO transducer be placed?

The Toco Transducer should be placed over the uterine fundus at the top of the abdomen. It is positioned using Leopold’s maneuvers to locate the fundus, then secured with an elastic belt to ensure consistent contact with the maternal skin during labor monitoring.

5. What number on TOCO indicates a contraction?

There is no universal number for a contraction on the Toco Transducer. However, a rise above the baseline (typically 10-20 mmHg) forms a "peak" that returns to baseline, indicating the presence of a contraction. The time length and intensity vary based on the labor stage.

6. What TOCO number is Braxton Hicks?

There is no specific Toco number for Braxton Hicks contractions. They typically appear as irregular, smaller peaks without a progressive pattern, differing from true labor contractions, which become stronger and more regular over time. Braxton Hicks contractions are often sporadic and not associated with cervical change.

Wrapping up

The Toco Transducer plays a crucial role in labor monitoring, offering valuable insights into uterine contractions and the progression of labor. Accurately tracking contraction frequency, duration, and resting tone helps healthcare providers make informed decisions for maternal and fetal well-being. While devices like Doppler and Ultrasound Transducers offer complementary insights, the Toco Transducer remains an essential in obstetric care. For those seeking reliable monitoring equipment, THE BIOMED GUYS offer top-quality products designed to meet the needs of healthcare professionals. Contact THE BIOMED GUYS to check out our advanced solutions today.
