ECG lead positioning is a crucial aspect of accurate heart monitoring, essential for diagnosing various cardiac conditions. Proper ECG electrode placement ensures that the heart's electrical activity is captured accurately, helping healthcare providers interpret the results effectively. As many as 50% of ICU ECGs have misplacements in V1/V2, highlighting the significant error rate in chest lead placement and the importance of accurately counting intercostal spaces. Whether you're using a 3-lead, 5-lead, or 12-lead configuration, understanding the correct placement of each electrode is vital for reliable data.

In this guide, we will learn about the essential steps involved in ECG electrode placement, with a special focus on precordial lead placement and its importance in diagnosing issues like MI mimics and other abnormalities. Additionally, we’ll go in-depth into the ECG troubleshooting tips to resolve common challenges during electrode application. Accurate lead positioning can be the difference between a precise diagnosis and a misleading result, so it is essential to get it right every time.

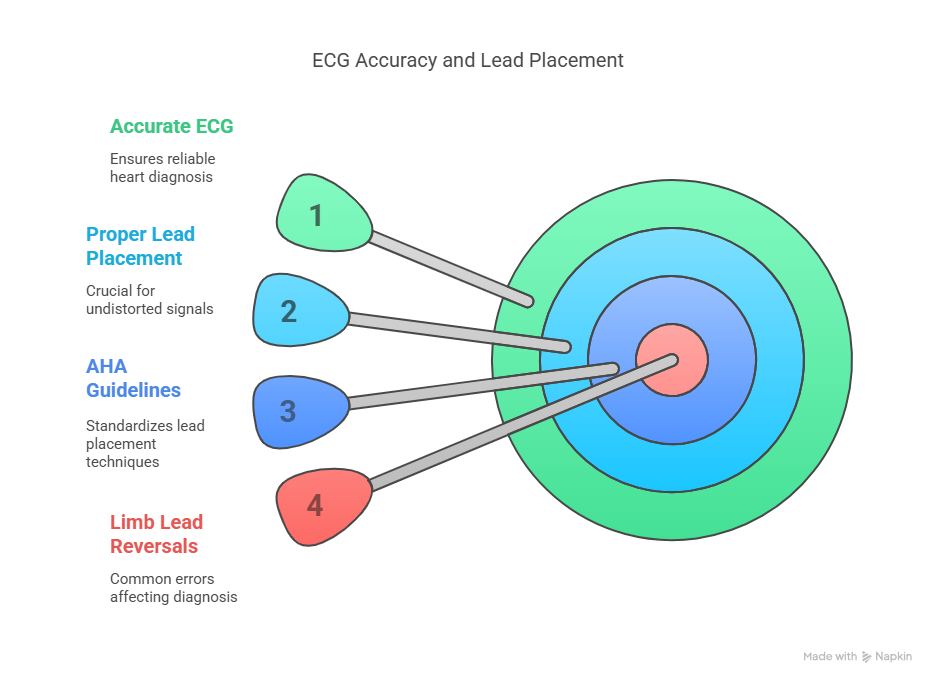

What Is an ECG and Why Proper Lead Placement Matters

An ECG records the heart's electrical activity. It is a vital tool for diagnosing arrhythmias, heart attacks, and other cardiovascular issues. Proper lead placement is crucial for accurate results, as misplacement can lead to incorrect interpretations, ultimately affecting diagnosis. For example, improper positioning of the limb leads or precordial electrodes can distort the heart's electrical signals.

Following AHA ECG guidelines is essential to ensure precision in placement, such as using intercostal space landmarks and understanding Lewis lead placement or the Fontaine lead technique for optimal readings. Statistics show that 0.4%–4% of ECGs experience limb lead reversals, which can significantly impact diagnostic accuracy (Peberdy MA, Ornato JP, Acad Emerg Med 1994). This emphasizes double-checking limb electrode placement to avoid diagnostic errors and improve patient outcomes.

Types of ECG Configurations

Understanding the different ECG configurations and their clinical applications is crucial for obtaining accurate diagnostic results. The 3-lead, 5-lead, and 12-lead systems each serve specific roles in cardiac monitoring, and the appropriate lead placement can provide critical insights into heart function. Let’s learn about the different systems, focusing on their unique placement requirements and the clinical situations where they are most effective.

3-Electrode System

The 3-lead ECG placement is one of the most basic systems, typically used for continuous cardiac monitoring, such as in ambulatory patients or during transport. In this configuration, the electrodes are placed on the right arm, the left arm, and the left leg (RA, LA, LL). The three leads derived from these electrodes—Lead I, II, and III—are bipolar, capturing the heart's electrical activity from three angles. This system is particularly useful in emergency settings and is often found in telemetry units.

5-Electrode (Telemetry) System

In the 5-lead ECG system, the placement of five ECG electrodes is improved with additional electrodes for more comprehensive monitoring, especially in telemetry and critical care settings. The standard color coding used by the AHA helps prevent errors in placement. The electrodes are placed on the right arm, the left arm, left leg, and right leg (RA, LA, LL, and RL) for limb leads, while the additional (V) chest lead options provide more detailed data on the heart's electrical signals. This system offers better heart rhythm detection and is commonly used for real-time monitoring of patients in hospitals or emergency departments.

12-Lead ECG Basics

The placement of 12-lead ECG is the most comprehensive and widely used system, providing detailed information about the heart's electrical activity. In this configuration, there are 10 electrodes: 4 limb electrodes (RA, LA, LL, RL) and six precordial electrodes (V1-V6) placed on the chest. The 12 leads derived from these electrodes offer an in-depth look at the heart from various angles, helping to identify conditions like myocardial infarctions (MI), arrhythmias, and other cardiac abnormalities. This system is the standard for diagnosing multiple cardiac conditions and is commonly used in hospitals and clinical settings.

Standard 12-Lead Electrode Placement

Proper electrode placement is crucial for accurate and consistent readings. This standardized procedure ensures the measurement of electrical activity from multiple angles, offering valuable insights into heart health. The following guidelines outline the appropriate positioning of limb electrodes and precordial leads to ensure accurate 12-lead ECG placement.

Limb Electrodes (RA, LA, RL, LL)

The limb electrodes are essential for establishing the reference points necessary for interpreting the heart's electrical activity.

• These electrodes are typically placed on the arms and legs, with the Right Arm (RA), Left Arm (LA), Right Leg (RL), and Left Leg (LL) positioned in specific anatomical locations.
• The ground lead, usually, Right Leg (RL), stabilizes the ECG signal by reducing interference.
• It is essential to avoid limb lead reversal, as improper placement can misinterpret the heart's electrical activity.
• Additionally, torso placed electrodes versus distal placement helps ensure accurate readings from the body's extremities to the heart's core.

Precordial Leads V1-V6

The precordial leads get placed on the chest, providing a clear view of the heart's electrical activity in the horizontal plane.

• Each lead (V1 through V6) is positioned on the chest at precise locations, including intercostal spaces, the sternal borders, and mid-clavicular and mid-axillary lines.
• V1 is positioned at the fourth intercostal space, right of the sternum, while V6 is placed at the fifth intercostal space, along the mid-axillary line.
• Proper placement of 12-lead ECG electrodes across these anatomical landmarks ensures a comprehensive view of the heart’s function.
• Additionally, accurate 12-lead ECG placement is crucial for detecting abnormal patterns or conditions that may not be visible in standard two- or three-lead ECGs.

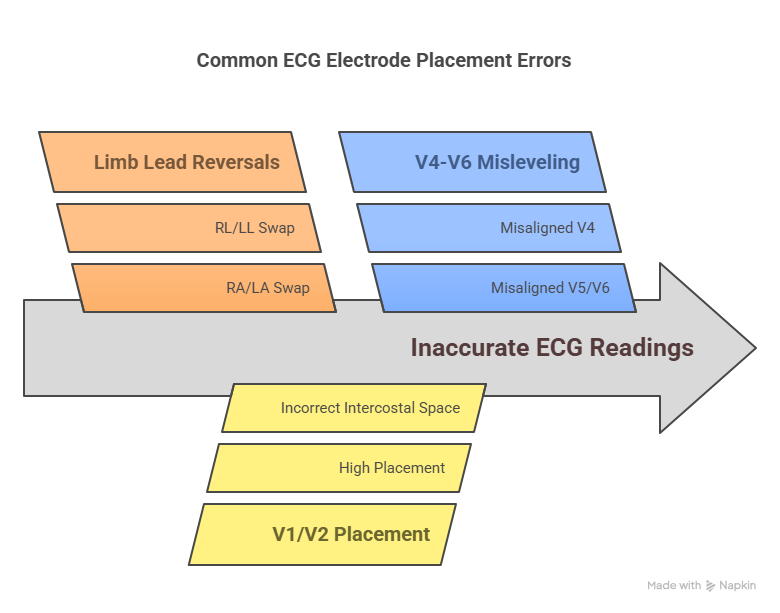

Common Placement Errors and How to Avoid Them

Accurate electrode placement is essential for a reliable ECG reading. Misplacement can distort the results, leading to misdiagnosis or incorrect interpretation. The following are common placement errors and tips on how to avoid them.

Limb Lead Reversals

One of the most frequent placement errors is limb lead reversal. This happens when the right arm (RA) and left arm (LA) or right leg (RL) and left leg (LL) are swapped. Such reversals can lead to incorrect limb leads and affect the overall ECG waveform, causing inaccurate representations of the heart's electrical activity. To avoid limb lead reversal, always double-check the positioning of the electrodes on the patient's limbs.

V1/V2 Electrodes Placed Too High

Another standard error occurs when the V1 and V2 electrodes are placed too high on the chest. These leads should be placed in the fourth intercostal space, at the right and left sternal borders, respectively. When positioned too high, they fail to capture the correct electrical signals from the heart's ventricles, leading to an inaccurate representation of the anterior heart wall. To avoid this, always ensure that V1 and V2 are placed at the correct anatomical landmarks.

V4-V6 Misleveling

Misleveling of leads V4 through V6 is another issue affecting ECG morphology. V4 should be placed at the fifth intercostal space along the midclavicular line, while V5 and V6 are placed along the anterior axillary and mid-axillary lines. If these leads are misaligned, it can distort the interpretation of the heart's electrical activity, especially in the lateral chest leads. Proper anatomical placement and alignment are key to avoiding this mistake.

Special ECG Configurations and Advanced Leads

Standard 12-lead ECG configurations may not provide enough detail in specific clinical situations, especially for detecting conditions like right ventricular or posterior myocardial infarction (MI). Special ECG configurations and advanced lead placements offer upgraded views of the heart's electrical activity, allowing for more accurate diagnoses in challenging cases. These advanced configurations, including right-sided ECG, posterior leads, and specialized leads like the Lewis and Fontaine leads, are crucial tools for clinicians.

Right-Sided ECG (V3R-V6R)

A right-sided ECG is beneficial in diagnosing right ventricular infarction (RV infarction). In this configuration, additional precordial leads, V3R through V6R, are placed on the right side of the chest to provide a view of the right heart's electrical activity. These leads mirror the standard precordial leads but are placed over the right chest, allowing for better assessment of the right ventricle. The right-sided configuration can help detect RV infarctions that may not be apparent in the standard 12-lead ECG. Proper placement of these leads ensures accurate detection of correct heart abnormalities, essential for timely intervention and treatment.

Posterior Leads (V7-V9)

Posterior leads (V7-V9) are placed along the left axillary, scapular, and paraspinal lines to provide a clear view of the posterior wall of the heart. This configuration is critical for diagnosing posterior myocardial infarction (MI), a condition often missed with standard ECG placements. By positioning these leads in the posterior chest, clinicians can better observe electrical activity from the back of the heart. Early detection of posterior MI using these leads can significantly improve patient outcomes. Correct placement of the posterior leads is essential for obtaining accurate readings that will guide treatment decisions.

Lewis Lead

The Lewis lead configuration amplifies atrial activity, making it particularly useful in cases of atrial flutter or wide-complex tachycardia. This lead system places electrodes on the chest to improve the visibility of atrial electrical signals that might otherwise be masked by more prominent ventricular activity. The Lewis lead configuration helps clinicians distinguish between atrial and ventricular arrhythmias by focusing on the atrial waveforms. The proper Lewis lead placement can aid in diagnosing and managing arrhythmias more effectively, allowing for better patient care.

Fontaine Leads

Fontaine leads are a specialized configuration of bipolar precordial leads used primarily to identify epsilon waves and atrial potentials. These leads are placed in specific locations across the chest to provide a clearer view of the electrical signals originating in the atria and the heart's epicardial surface. Fontaine lead placement is particularly useful in diagnosing arrhythmias and conditions like arrhythmogenic right ventricular cardiomyopathy (ARVC), where abnormal electrical activity in the heart muscle can be identified. This advanced lead system provides valuable insights into the heart's electrical activity, enabling more precise diagnoses and effective treatment for patients with various cardiac conditions.

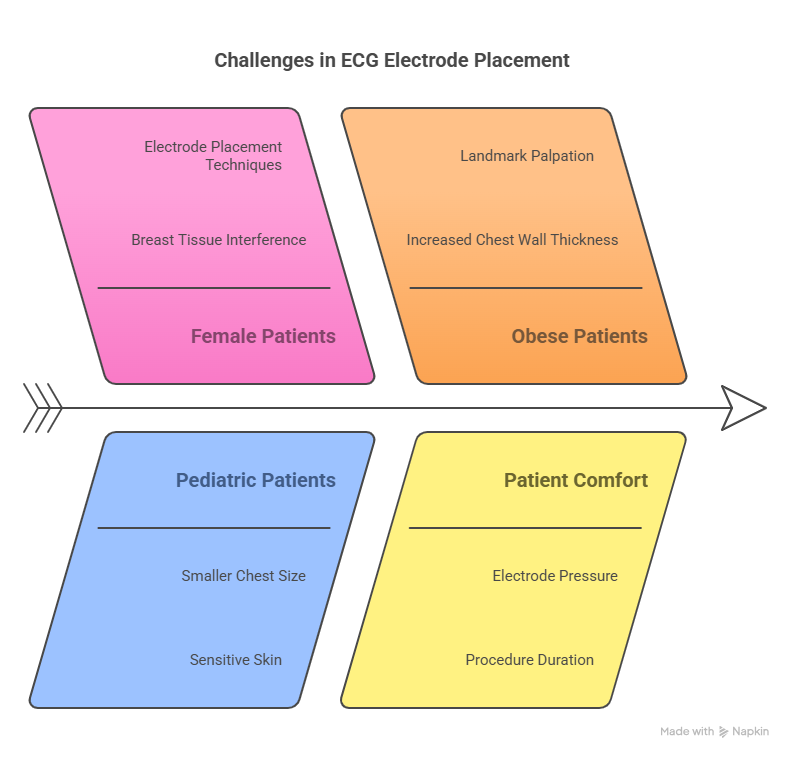

Patient Variations and Practical Tips

When performing an ECG, it’s essential to consider the patient's unique characteristics and anatomical variations. Proper electrode placement can be more challenging in specific populations, such as females, pediatric patients, and obese patients. Adjusting the approach to these variations ensures accurate ECG readings, which is critical for effective diagnosis and treatment. It's also important to ensure patient comfort during the procedure, as this can affect the reading quality and the patient's experience.

Female Patients

In female patients, breast tissue can interfere with the correct placement of precordial leads, particularly V3-V6. One common technique to address this is breast displacement, where the breast is gently moved aside to allow for the proper placement of the electrodes.

If displacement is not possible or uncomfortable, under-breast placement of leads (just below the breast) can provide accurate readings without causing discomfort. Ensuring the electrodes are securely placed while avoiding pressure on the breast is essential to maintaining both comfort and the integrity of the ECG recording.

Pediatric Patients

Pediatric patients, especially infants and young children, present unique challenges due to their smaller chest size. When placing electrodes on children, it is essential to adjust intercostal landmarks to account for their shorter torsos. For instance, the fourth intercostal space may need to be lower or higher than usual, as per the child’s age and size.

The placement of limb leads might require modifications to ensure the electrodes make proper contact with the skin, as pediatric skin can be more sensitive. Taking extra care to position the leads accurately in a smaller chest ensures the ECG captures precise electrical activity for accurate diagnosis.

Obese Patients

Obese patients may present challenges locating the standard anatomical landmarks due to increased chest wall thickness and body fat. In such cases, palpating landmarks carefully is crucial to ensure accurate electrode placement.

Additional stabilization methods, such as securing the electrodes with tape or adhesive pads, can help prevent the leads from shifting during the procedure. In some cases, slight modifications in electrode placement may be necessary to achieve the best signal quality, such as placing the leads slightly higher or lower than typical locations. Ensuring secure electrode attachment helps in obtaining a precise and reliable ECG reading.

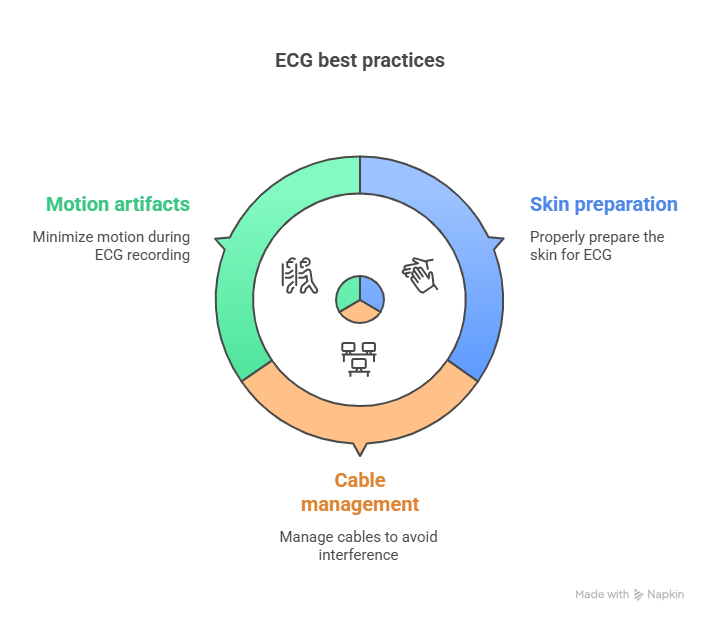

Best Practices and Artifact Reduction

To ensure accurate and reliable ECG readings, following best practices for electrode placement, skin preparation, and cable management is crucial. Proper attention to these factors can significantly reduce common artifacts and improve the overall quality of the ECG recording.

Skin Preparation

Skin preparation is essential for reducing impedance and improving electrode contact. To achieve this, gently clean the skin using alcohol wipes or a skin-prep solution to remove oils, dirt, or other residues that could hinder electrical conductivity. In patients with excessive body hair, shaving the area where electrodes will be placed may be necessary to make a clean and secure connection. Proper skin prep ensures that the electrodes maintain good contact, which helps to obtain clearer ECG signals without distortion.

Cable Management

Proper cable management is critical in minimizing interference and reducing motion artifacts during an ECG. Cables should be neatly arranged and secured to prevent tangling or pulling, which can cause movement-related disruptions in the signal. Using cable clips or adhesive pads to keep cables in place can reduce the risk of unwanted artifacts. Careful cable management helps maintain a consistent ECG signal throughout the recording, especially during lengthy procedures or when the patient moves.

Motion Artifact Minimization

Motion artifacts are common when patients are not still during the ECG procedure. Instruct patients to remain as still as possible to minimize motion interference and avoid talking or moving. If the patient is restless or anxious, consider using calming techniques to promote relaxation. In some cases, securing the patient’s position with comfortable restraints or padding can help reduce involuntary movement, ensuring more accurate results. Additionally, using high-quality electrodes susceptible to motion can help minimize these artifacts.

Wrapping up

Accurate ECG placement and artifact reduction are crucial to get reliable results and make informed decisions in patient care. By adhering to best practices such as proper skin preparation, cable management, and minimizing motion artifacts, healthcare professionals can ensure optimal ECG readings.

For top-quality medical products and reliable diagnostic tools, trust The Biomed Guys. We offer a wide range of high-performance ECG electrodes, cables, and other essential equipment tailored to meet the needs of healthcare providers. Check out The Biomed Guys today to learn about our products and improve the accuracy and efficiency of your diagnostics.

FAQ

1. Where should ECG leads be placed?

The limb electrodes are placed on the patient’s limbs:

• RA (Right Arm): Located on the right shoulder or wrist.
• LA (Left Arm): Positioned on the left shoulder or wrist.
• RL (Right Leg): Placed on the right lower leg or ankle (ground electrode).
• LL (Left Leg): Positioned on the left lower leg or ankle.

The precordial leads (V1-V6) are placed on the chest:

• V1: 4th Intercostal Space (ICS), Right Sternal Border (RSB).
• V2: 4th ICS, Left Sternal Border.
• V3: Between V2 and V4.
• V4: 5th ICS, Mid-Clavicular Line.
• V5: 5th ICS, Anterior Axillary Line.
• V6: 5th ICS, Mid-Axillary Line.

2. What is the anatomical position of the ECG lead?

The intercostal spaces (ICS) are the spaces between the ribs, where the precordial leads are placed. The sternal borders refer to the left and right sides of the sternum, where leads V1 and V2 are positioned. The mid-clavicular line is an imaginary vertical line passing through the middle of the clavicle, where V4 is placed. The anterior/mid-axillary lines run vertically down the side of the chest, and V5 and V6 are placed along these lines. Limb electrodes are placed on the arms and legs.

3. What are the 5-lead ECG placement names?

The 5-lead ECG system uses the following electrode colors according to AHA color coding:

• RA (white): Right Arm
• LA (black): Left Arm
• RL (green): Right Leg (ground)
• LL (red): Left Leg
• V (brown): Precordial Lead (typically V1 or V5 for monitoring)

4. How to memorize 12-lead ECG placement?

To memorize the 12-lead ECG placement, use the anatomical sequence and mnemonic techniques. For the precordial leads, remember the sequence: 4th ICS → 5th ICS. Utilize mnemonic devices like “V1 to V6 from sternum to axilla” for lead placement. Consistent, repeated practice reinforces muscle memory, ensuring correct placement.

5. Where do you place leads 1 and 2 on an ECG?

Lead I is placed between the LA (Left Arm) and RA (Right Arm) electrodes and represents a bipolar view of the heart's electrical activity from the left to the right.

Lead II is placed between the LL (Left Leg) and RA (Right Arm) electrodes, providing a bipolar view of the heart's activity from the bottom left to the top right. The ground electrode is positioned at the RL (Right Leg).
