5-Lead ECG Placement Made Easy: A Step-by-Step Guide with Diagrams

Posted by Philip on 22nd Sep 2025

5-Lead ECG Placement Made Easy: A Step-by-Step Guide with Diagrams

Electrocardiogram (ECG) placement is an elemental skill required in clinical practice. Proper electrode positioning ensures accurate readings, which are crucial for diagnosing heart conditions. Understanding the step-by-step process of 5-Lead ECG Placement is vital. While initially seeming complicated, it becomes straightforward with the proper knowledge and techniques.

Studies show that misplacing electrodes, especially V1 and V2, can happen in a significant number of cases, up to 45% of women and 29% of men. Considering this, one cannot stress enough the importance of correct landmarking to avoid inaccuracies. We’ll walk you through each stage, ensuring you can confidently place the leads and avoid common errors.

By the end of this guide, you’ll learn about the critical aspects of 5-Lead ECG placement, enabling you to provide reliable ECG readings in your practice.

What Is an Electrocardiogram (ECG)?

It is a medical test used to measure the heart's electrical activity. It keep track of the timing and strength of electrical signals as the heart beats. ECGs help diagnose various heart conditions, such as arrhythmias, heart attacks, and heart disease. During the procedure, electrodes are placed on the skin to capture the heart’s electrical impulses. For accurate readings, proper placement is crucial.

The 5-Lead ECG placement method is often used in hospitals and clinics to monitor heart activity. Additionally, guidelines from organizations like the AHA and IEC ECG placement provide standardized electrode positions. ECG electrode color coding ensures that each electrode is placed correctly for optimal results. Understanding these fundamental concepts is essential for clinicians and patients to achieve accurate heart monitoring.

How Does an ECG Work?

An ECG detects the electrical impulses that trigger heartbeats. These impulses lead to the heart muscle contracting and pumping blood. Electrodes attached to the skin detect these electrical signals as the heart goes through its phases of depolarization and repolarization. The depolarization wave represents the contraction of the heart muscle, while repolarization indicates the relaxation phase.

Continuous monitoring with a 5-Lead ECG placement allows for real-time observation of heart activity. The electrodes, positioned adequately according to AHA ECG placement and IEC ECG placement standards, transmit signals to an ECG machine. This machine then visually represents the heart’s rhythm and electrical function. Correct electrode placement, aided by ECG electrode color coding, is essential to avoid inaccurate readings, ensuring effective heart health monitoring and diagnosis.

3-Lead vs 5-Lead vs 12-Lead ECG Comparison

ECG systems come in various configurations, with 3-lead, 5-lead, and 12-lead setups offering different views. A 3-lead ECG placement typically monitors basic heart rhythms and is often used in emergency settings or ambulatory care.

The 5-lead ECG placement provides more detailed monitoring and is often used for continuous cardiac surveillance. It includes the right arm (RA), left arm (LA), right leg (RL), left leg (LL), and a V lead for better heart activity tracking. The 12-lead ECG offers the most comprehensive heart evaluation, providing detailed views of all aspects of heart function.

This setup is often used for diagnosing heart conditions like arrhythmias, ischemia, and infarctions. The configuration choice depends on the clinical need, with 5-lead systems offering a balance of simplicity and accuracy, while 12-lead setups are reserved for detailed assessments.

What Is a 5-Lead ECG?

The 5-lead ECG is a streamlined method for monitoring the heart’s electrical activity. It uses five electrodes placed on specific body areas: RA (right arm), LA (left arm), RL (right leg), LL (left leg), and a chest electrode. These placements provide a continuous view of the heart’s electrical signals, making it ideal for inpatient and emergency settings.

The 5-lead ECG placement allows for monitoring essential aspects of heart rhythm while offering more information than a basic 3-lead configuration. Compared to the 3-lead ECG, the 5-lead setup improves accuracy, especially detecting arrhythmias and other abnormal heart rhythms. While the 12-lead ECG provides the most detailed analysis, the 5-lead system offers a practical solution in clinical settings, combining efficiency and reliability.

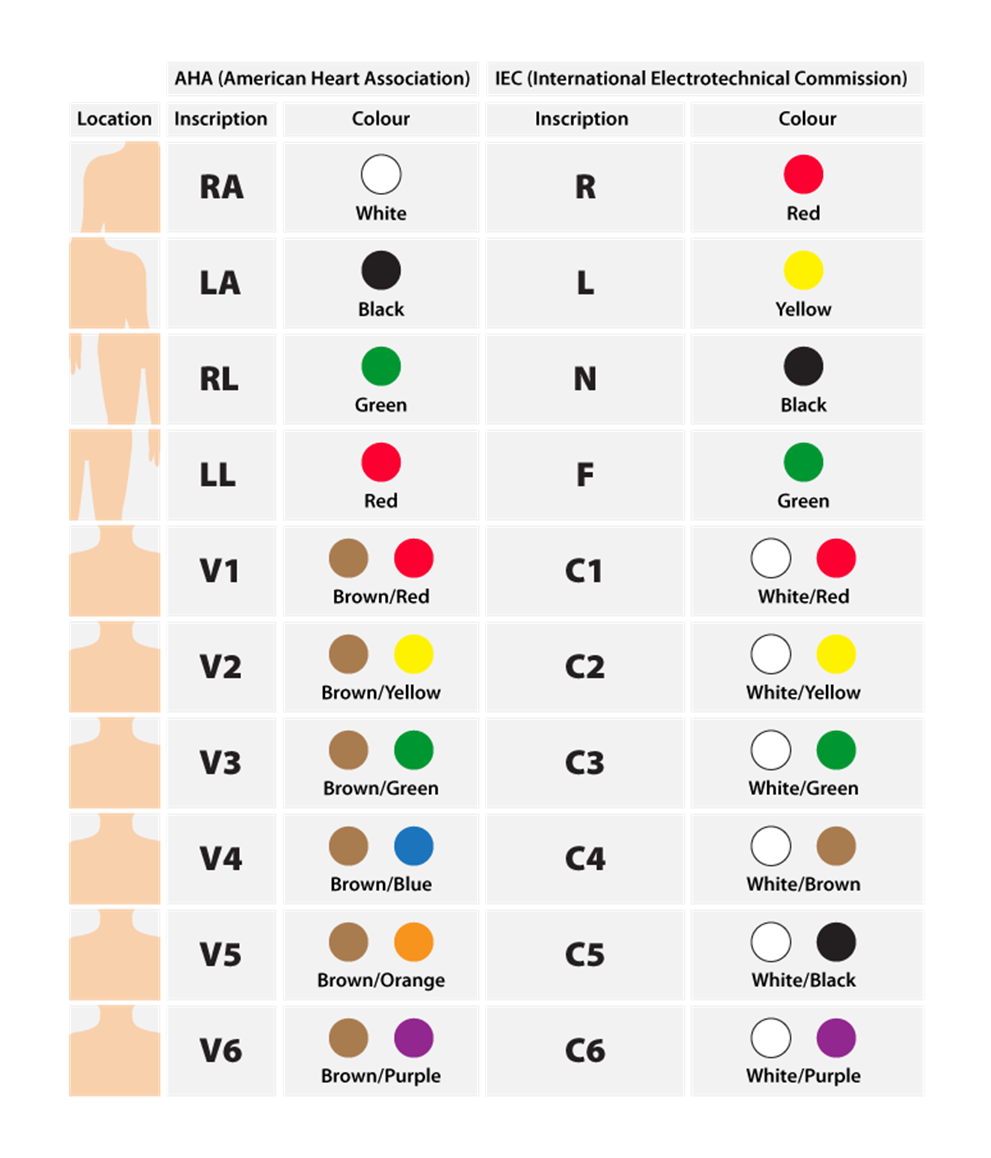

Color Coding Standards: AHA vs IEC

The AHA and IEC have developed standardized color coding systems for ECG electrode placement. The AHA ECG placement system uses a mnemonic to help remember lead placements: "White on right, smoke over fire, and sky over grass"—referring to the RA (right arm), LA (left arm), RL (right leg), and LL (left leg) leads.

The IEC ECG placement system uses a "traffic-light" color scheme: red for the right arm, yellow for the left arm, green for the right leg, and black for the left leg. Each color corresponds to a specific placement to ensure consistency and accuracy. These color codes help prevent confusion during ECG electrode setup, providing reliable heart monitoring. Both systems prioritize explicit, simple mappings for clinicians, improving workflow and reducing placement errors in heart diagnostics.

Step-by-Step 5-Lead Placement

Proper placement of the 5-lead ECG is crucial for obtaining accurate heart readings. Following the correct procedure ensures effective monitoring and minimizes errors. This step-by-step guide deciphers each process phase, from patient preparation to final checks. Accurate electrode positioning helps prevent complications like alarm fatigue and improves the reliability of ECG readings. Let's begin by preparing the patient and setting the foundation for precise ECG placement.

Patient Preparation

Before starting the 5-lead ECG placement, it’s essential to position the patient correctly. Ensure the patient is relaxed, lying flat on their back, in a comfortable position. For female ECG placement, always ensure privacy and dignity by appropriately draping the patient. Explain the procedure simply so the patient understands and feels at ease. Obtain their consent, reassuring them that this test will help monitor their heart’s electrical activity. Proper patient preparation is key to preventing unnecessary discomfort and promoting trust during the procedure. Always ask the patient about any pain or concerns they may have.

Skin Preparation

Next, prepare the skin to ensure reliable electrode adhesion. Clean the electrode sites with an alcohol swab to remove oils and dirt. If there’s significant hair at the placement sites, use a razor to remove it carefully. In some cases, gentle abrasion techniques may create a better surface for electrode contact. This reduces resistance and improves signal quality. Skin preparation helps prevent any disruptions in the electrical signals, ensuring the accuracy of the ECG reading. Clean and smooth skin ensures proper electrode function and prevents false readings.

Electrode Placement

The electrodes must be placed according to anatomical landmarks for accurate monitoring. Begin with the RA (right arm) and LA (left arm) placements, ensuring the electrodes are secured on the upper limbs. Next, position the RL (right leg) and LL (left leg) electrodes on the lower limbs. Depending on the clinical need, placement may vary between V1, V4, or V5 for the V lead. In some cases, such as prone ECG placement, slight adjustments to electrode positioning may be necessary. Accurate lead placement is critical for precise and reliable heart readings during monitoring.

Wire Connection & Alarm Check

Finally, the wires are connected securely to the electrodes, ensuring no loose connections that could lead to poor signal transmission. Test the quality of the ECG signal to ensure everything is functioning correctly. This step is essential to avoid alarm fatigue, as poor signal quality may trigger unnecessary alerts, confusing the monitoring process. Confirm that all leads are securely attached and there is no risk of disconnection during the procedure. A quick alarm check ensures the system is in working order, preventing disruptions during continuous monitoring, such as with Holter monitor placement.

Special Considerations in Placement

When performing ECG placement, special considerations must be made to ensure accurate and comfortable monitoring for different patient types. Each patient’s anatomy and medical history can affect the electrodes' position. These factors include the need for adjustments when dealing with female patients, prone patients, or those with pacemakers or implanted devices. Extra precautions are taken to ensure long-term adhesion and signal quality for specific monitoring needs, like Holter monitoring. Let’s take a closer look at these considerations.

Female Patients

Proper care must be taken when positioning electrodes in female ECG placement, especially around breast tissue. When placing electrodes on the chest, carefully lift or retract the breast tissue for accurate readings. Under-tissue placement ensures the electrodes make solid contact with the skin for better signal transmission. This is particularly important for leads like V1 and V4, where placement near the breast area is crucial. Ensuring comfort during the procedure also promotes cooperation from the patient, resulting in more reliable data and fewer disruptions in monitoring.

Prone Patients

Prone ECG placement requires special attention to the positioning of electrodes due to the patient's body orientation. In these cases, the posterior electrode positions for limbs and chest must be adjusted. Place the RA and LA electrodes on the back, ensuring they align with the correct anatomical landmarks. Similarly, the RL and LL electrodes should be positioned on the patient's posterior lower limbs. In certain circumstances, extra care is needed to prevent discomfort or the displacement of electrodes. Proper placement is essential for accurate heart activity readings, even in prone positions.

Pacemakers/ICDs

Patients with pacemakers or implantable cardioverter-defibrillators (ICDs) require specific precautions during ECG placement. Avoid placing electrodes directly over the device site, as this could interfere with the device’s function or cause discomfort. Adjust the electrode distances, especially near the pacemaker or ICD, to avoid signal disruption. Positioning the electrodes away from the device ensures both accurate heart monitoring and the safety of the implanted device. Keep the patient’s comfort and device integrity in mind to minimize complications during the procedure.

Holter Monitoring

Holter monitor placement requires particular attention to electrode adhesion, as the device is worn for 24-48 hours. Ensure electrodes adhere securely to the skin to prevent detachment during daily activities. Consider using strain relief loops to minimize discomfort and avoid the wires pulling on the skin when placing electrodes. This is especially important for long-term monitoring, as poor adhesion can result in signal loss or interruptions, leading to inaccurate data. Holter monitoring, often used for continuous heart monitoring, requires consistent electrode placement to ensure high-quality, uninterrupted readings.

H2: Troubleshooting & Possible Complications

Common misplacements, false alarms, and when to escalate to 12-lead or additional tests.

Advanced & Alternative Lead Configurations

In certain clinical situations, advanced or alternative lead configurations may be used to improve ECG readings. These configurations are crucial for detecting specific conditions that are not easily identifiable with standard lead placements. By adapting the electrode positions, clinicians can gain deeper insights into heart function, especially in complex cases such as right ventricular infarction, STEMI, or atrial activity. Let’s learn about a few advanced configurations that can offer more detailed and accurate heart monitoring.

Right-Sided ECG

The right-sided ECG, specifically V4R placement, is essential for detecting right ventricular (RV) infarction. In this configuration, V4R is positioned on the right side of the chest, mirroring the V4 lead's location on the left. This leads to a more accurate assessment of the RV's electrical activity, often masked by left-sided leads. Right-sided ECG placement is particularly beneficial in diagnosing patients with suspected inferior wall myocardial infarction (MI), where RV involvement is common. Correct placement of V4R ensures clinicians can monitor the right ventricle's activity, reducing the risk of missed diagnoses and improving patient outcomes.

Posterior Leads (V7-V9)


Posterior leads (V7-V9) are used when diagnosing posterior wall STEMI, which may be overlooked with standard anterior leads. These leads are placed along the back of the chest, with V7 placed at the level of the V6 electrode, V8 directly beneath the scapula, and V9 just above the lower vertebrae. This positioning allows better detection of electrical activity in the posterior wall of the heart. Proper placement of these leads can help accurately identify posterior STEMI, ensuring timely interventions and improving treatment outcomes. Adjusting for posterior leads can help prevent alarm fatigue by providing more specific data.

Lewis Lead (S5-Lead)

The Lewis lead (S5-lead) is a unique configuration for uplifting atrial activity detection. It is primarily used to observe the electrical signals from the atria, especially in patients with arrhythmias or atrial abnormalities. The S5-lead is positioned by placing the electrodes at specific points along the body, including the left and right upper chest areas. This lead configuration helps detect subtle atrial electrical activity that may not be visible in traditional 12-lead ECGs. Improving atrial monitoring makes the Lewis lead valuable for patients with irregular heart rhythms or suspected atrial fibrillation.

Fontaine Leads

Fontaine leads are designed to detect Epsilon waves and atrial potentials, which can be crucial for diagnosing arrhythmias like ventricular tachycardia. These leads are placed strategically to capture electrical activity from the heart's atrial and ventricular regions. The Fontaine lead configuration is often used in cases where other lead setups might miss these key arrhythmic indicators. Placing these leads accurately ensures the detection of early arrhythmias and improves patient care. As with all advanced lead setups, ensuring proper electrode placement is key to reducing errors, preventing alarm fatigue, and guaranteeing consistent monitoring.

FAQs

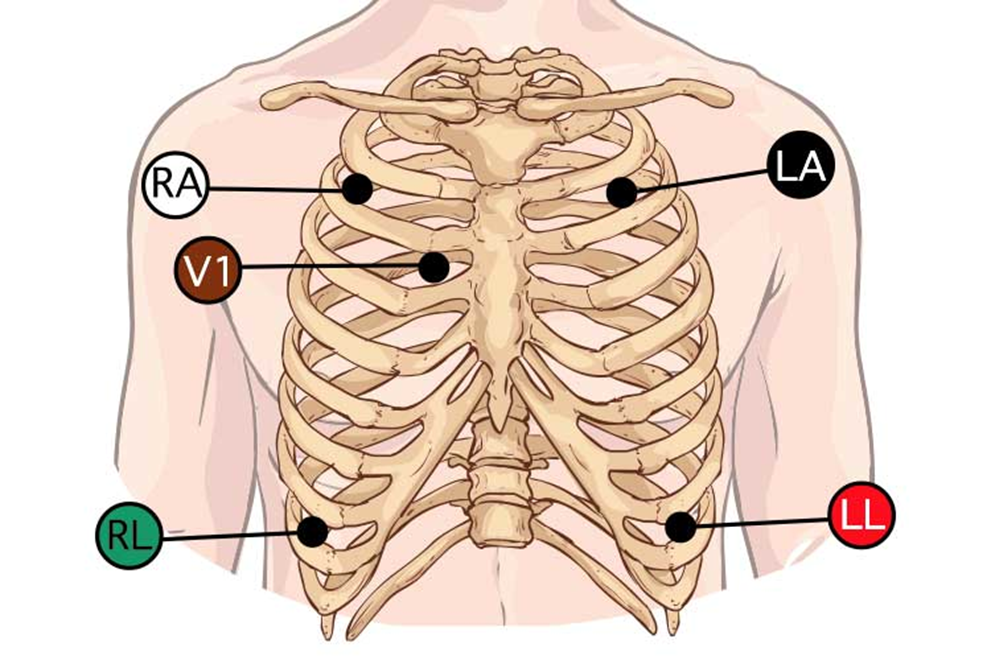

1. Where do you place the 5-lead on an ECG?

For the AHA standard:

  • RA (white) below the right clavicle,
  • LA (black) below the left clavicle,
  • RL (green) lower right torso,
  • LL (red) lower left torso,
  • V (brown) V1 at the 4th intercostal right sternal border.

For the IEC standard:

R (red), L (yellow), N (black), and F (green) are in the same anatomical positions, and C (white) is placed at V1.

2. Where do you place each lead during a 5-lead setup?

For the AHA standard:

  • RA (white): Below the right clavicle
  • LA (black): Below the left clavicle
  • RL (green): Lower right torso
  • LL (red): Lower left torso
  • V (brown): V1 at the 4th intercostal right sternal border

For IEC: The same anatomical positions with colors as per IEC standard: R (red), L (yellow), N (black), F (green), and C (white).

3. What is the difference between a 5-lead ECG and a 3-lead ECG?

The 5-lead ECG adds a precordial (chest) lead, typically V1, to monitor heart activity more accurately. This allows for better detection of ischemia and improved arrhythmia differentiation compared to the 3-lead ECG, which only provides I, II, and III, offering a more basic heart rhythm analysis.

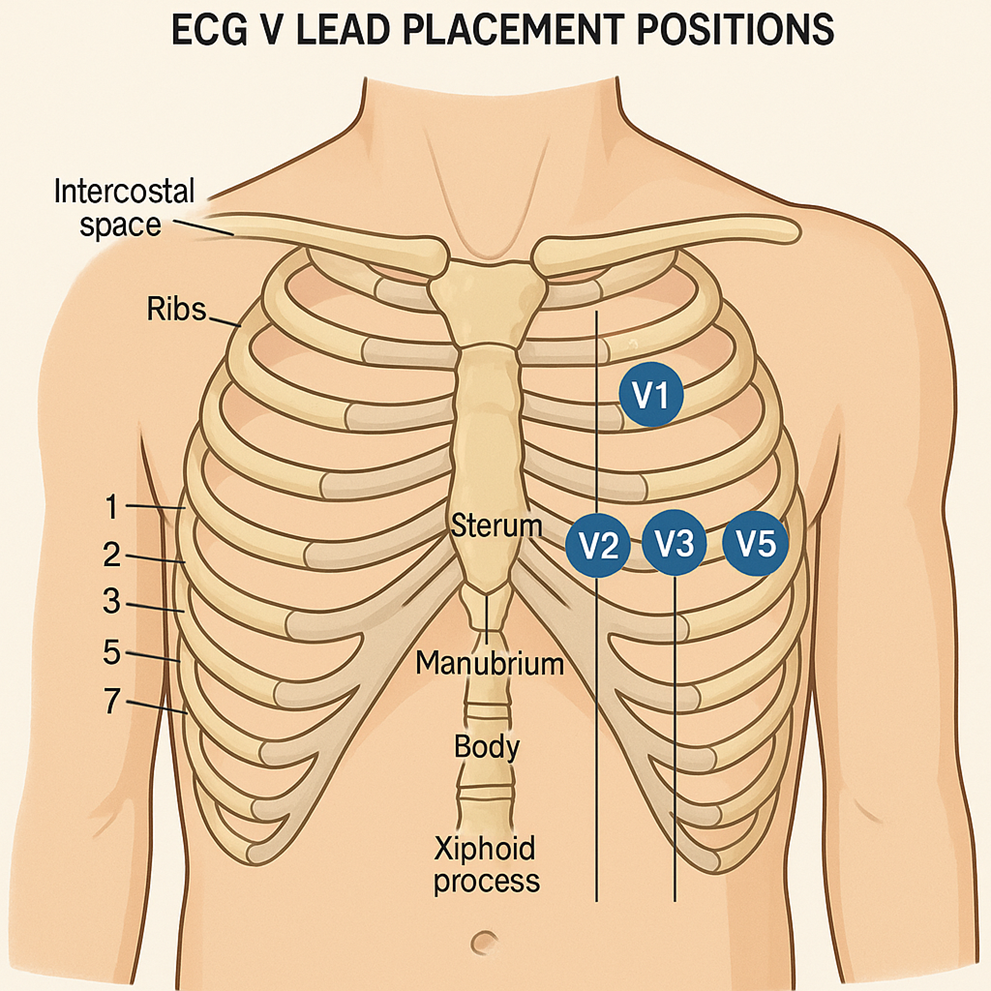

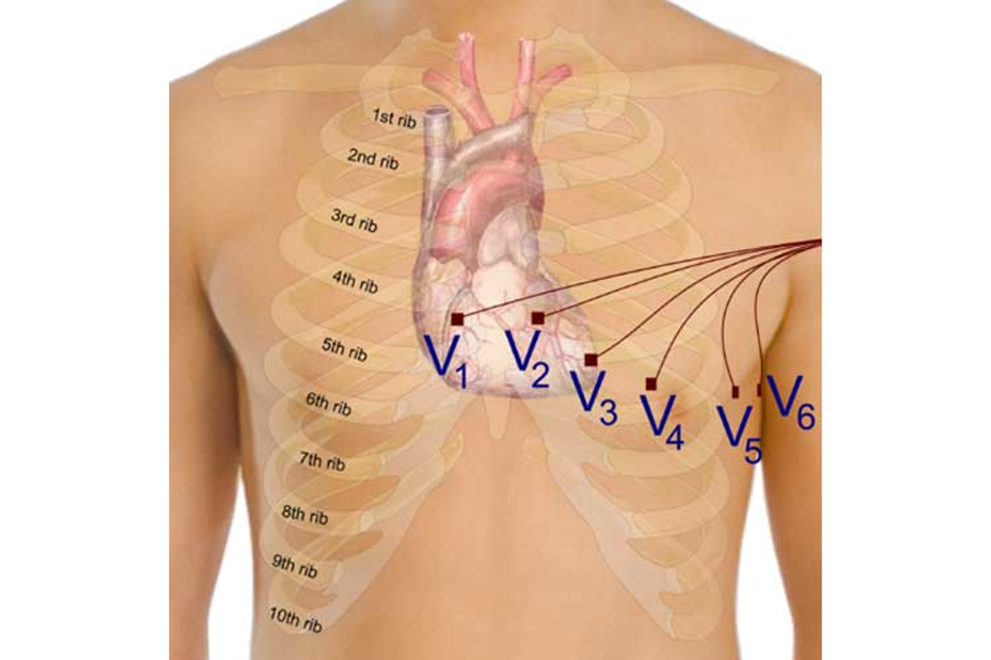

4. Where should the V5 lead be placed?

The "V" lead is flexible in a 5-lead system. For arrhythmia detection, place it at V1 (4th intercostal right sternal border). For ischemia detection, use V4 (5th intercostal mid-clavicular) or V5 (5th intercostal anterior axillary) for better heart electrical monitoring and ischemic changes.

Additional Resources & Videos

For those seeking to deepen their understanding of ECG placement and interpretation, here are some valuable resources:

  1. ECG Interpretation Tutorials – Check out online tutorials on platforms like ECG Academy and Skillshare ECG Courses.
  2. YouTube Channels – Channels like ECG and Arrhythmia and The ECG Guy offer in-depth video lessons.
  3. Books – "Rapid Interpretation of EKGs" by Dale Dubin is an excellent resource for beginners.
  4. Clinical Guidelines – Refer to the AHA's ECG Guidelines for the latest standards and updates.

These resources will guide you in mastering 5-lead ECG placement and interpretation.
