Understanding 3-Lead EKG Placement is essential for emergency and routine care nurses. Proper EKG lead placement can mean the difference between accurate cardiac monitoring and a misread rhythm, whether working in a hospital, clinic, or pre-hospital environment. This quick guide breaks down everything you need about 3-lead ECG placement, from identifying the correct anatomical landmarks to ensuring consistent electrode positioning. EKG and ECG are terms that can be used interchangeably throughout the guide.

Ideal for continuous monitoring rather than full diagnostic purposes, the 3-lead setup is commonly used in telemetry, transport, and during anesthesia. But even though it’s a basic configuration, small mistakes in placement can lead to misleading results. That’s why nurses, especially those early in their careers or transitioning into new roles, need a clear and practical overview of this fundamental skill.

In the following sections, you’ll find easy-to-follow instructions, illustrations, and practical tips to help you perform 3-lead EKG placement confidently and correctly every time.

Introduction to 3-Lead EKG

A 3-lead EKG (electrocardiogram) is a basic cardiac monitoring setup that uses three electrodes to track the heart’s electrical activity. It captures data from three viewpoints: positive, negative, and ground. The simplicity and speed of 3-lead EKG placement make it a go-to for continuous bedside monitoring, especially when quick setup is critical.

The leads are usually placed on the right arm, left arm, and left leg (or chest, depending on protocol), and interpreting the waveform offers insight into arrhythmias, conduction abnormalities, and heart rate variability. The 3-lead ECG placement remains valuable in initial cardiac assessments, short-term monitoring, and telemetry. Nurses, EMTs, and clinical staff must master this foundational skill to ensure accurate and timely patient evaluation in various medical settings.

Why is a 3-Lead EKG essential?

According to the WHO and CDC, cardiovascular disease (CVD) remains the primary cause of death globally, responsible for nearly 18 million deaths annually. 3-lead ECG placement allows for rapid cardiac surveillance, particularly in acute care environments where time is critical. While not as extensive as a 12-lead, it provides frontline data that can alert staff to life-threatening arrhythmias and abnormal heart rates. Its efficiency makes it ideal for patients with known cardiac issues or those evaluated for new symptoms.

For nurses, mastering 3-lead EKG placement ensures they can initiate basic monitoring quickly, enabling timely interventions that save lives. Early changes on a 3-lead reading often prompt further investigation through more detailed diagnostic tools like a 12-lead ECG or echocardiogram.

Early Detection of Arrhythmias Saves Lives

One of the primary purposes of cardiac monitoring is to detect arrhythmias. The 3-lead EKG setup helps clinicians pick up these early warning signs during inpatient and outpatient care. Proper 3-lead ECG placement is essential for reliable rhythm strips and waveform clarity. Inconsistent placement may result in misleading signals, complicating diagnosis or delaying treatment.

Nurses and clinical staff should feel confident in their 3-lead knowledge, as it's often the first step toward identifying an issue that requires escalation.

Essential for Bedside and Mobile Monitoring

In hospital settings, especially in telemetry units or during patient transfers, reliable 3-lead EKG placement becomes indispensable.

Compared to a 5-lead vs. 3-lead ECG, the latter is quicker to apply and more comfortable for the patient during prolonged monitoring. The 3-lead system remains the most practical for standard surveillance. The ability to watch for sudden changes in real time allows healthcare providers to intervene quickly, improving patient outcomes. Correct and consistent 3-lead ECG placement ensures signal clarity and minimizes artifacts.

3-Lead EKG Basics

Before determining how to place electrodes correctly, it's helpful to understand the fundamental principles behind 3-lead cardiac monitoring. These systems are based on concepts that date back to early electrophysiology, particularly Einthoven’s triangle, which allows us to visualize the electrical activity of the heart through three key leads. Whether used in 3-lead EKG Holter monitors for 24–48 hours or bedside telemetry, accuracy begins with proper electrode positioning and skin preparation for ECG. Let’s look at the science behind the setup.

Einthoven’s Triangle

Einthoven’s triangle is a theoretical model used to describe how electrical signals travel between the right arm, left arm, and left leg electrodes. Each side of the triangle represents one of the three bipolar limb leads (I, II, III). This foundational principle helps clinicians interpret how electrical impulses move through the heart. Ensuring proper skin preparation for ECG—such as cleaning oils or gentle abrasion—improves signal quality, making Einthoven’s model useful in clinical monitoring.

Understanding Leads I, II, III

Each lead in the 3-lead setup captures a unique view of the heart. Lead I measures between the right and left arms (lateral view), Lead II from the right arm to the left leg (inferior view), and Lead III takes the images from the left arm to the left leg. Lead II is most commonly used because it provides a clear P-wave, which is ideal for tracking atrial activity. With atrial fibrillation affecting 2.7–6.1 million Americans (CDC), monitoring using 3-lead ECG systems—especially Holter monitors—is critical for detecting intermittent arrhythmias and guiding treatment.

Equipment and Preparation

Before applying a 3-lead system, prepare your equipment and the patient. A well-prepared Telemetry ECG setup reduces false alarms, improves signal clarity, and ensures that arrhythmias aren’t missed due to poor contact or interference. The choice of electrodes and proper skin preparation for ECG are critical for capturing reliable data. Here’s what you need to know to optimize ECG signal quality.

EKG Machine and Electrodes

The standard Telemetry ECG setup uses snap or adhesive gel electrodes in pre-wired or lead-wire versions. Most facilities follow color coding conventions: white (right arm), black (left arm), and red (left leg or lower chest). Choosing high-quality electrodes and ensuring they are not expired helps minimize artifacts and dropouts. Correct placement and the right electrode type uplift ECG signal quality, especially during long monitoring sessions.

Skin Preparation

Proper skin preparation for ECG is essential to reduce electrical resistance and prevent false alarms. Begin by gently trimming hair in the electrode area, then cleanse the skin with alcohol or mild soap to remove oils and debris. Dry the skin thoroughly before applying electrodes. This step improves adhesion and ensures better ECG signal quality, particularly in patients on long-term Telemetry ECG setups, where consistency matters most.

Electrode Placement Standards: AHA vs IEC

Electrode placement may follow different conventions depending on the standard in use—primarily the American Heart Association (AHA) or the International Electrotechnical Commission (IEC). While both aim to ensure accurate monitoring, their color-coding and labeling systems differ. Understanding both is important, especially in facilities using equipment from various manufacturers. The following sections break down color codes, placements, and helpful mnemonics to simplify the process for busy clinicians.

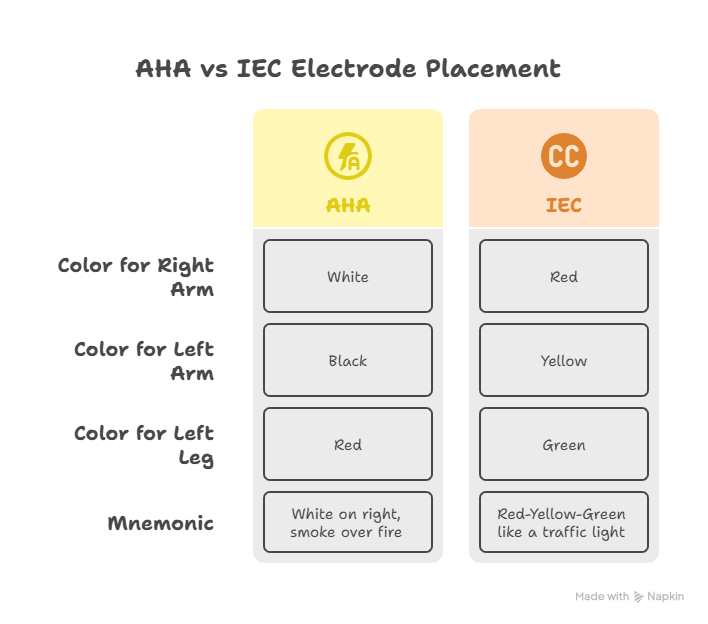

AHA Color-Coding and Placement

The AHA standard uses the following color codes: white for the Right Arm (RA), Black for the Left Arm (LA), and Red for the Left Leg (LL). A helpful mnemonic is “White on right, smoke (black) over fire (red)”—with black above red on the left side. This simple memory aid helps ensure consistent placement during 3-lead EKG placement, reducing setup errors and improving signal reliability.

IEC Color-Coding and Placement

Under the IEC standard, color coding is slightly different: Red for RA, Yellow for LA, and Green for LL. Think of the mnemonic “Red-Yellow-Green like a traffic light” in a downward direction. This system is commonly used in European equipment and some transport monitors. Understanding both standards allows staff to adapt quickly to clinical or mobile settings.

Placement Mnemonics and Tips

Mnemonics are handy to prevent confusion and speed up 3-lead ECG placement. For AHA: “White on right, smoke (black) over fire (red).” For IEC: “Red-Yellow-Green, top to bottom like a traffic light.” Use these during training or in checklists to build habits that stick, especially in high-pressure or multi-patient environments.

Step-by-Step 3-Lead EKG Placement

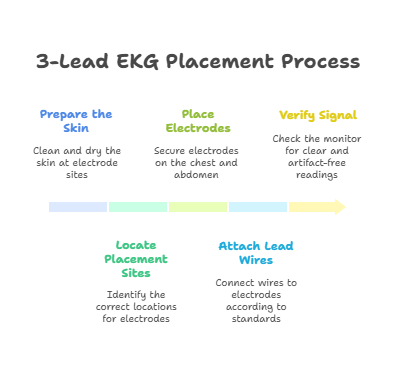

Following a systematic process is the key to ensuring accurate, consistent, and artifact-free readings. The following steps outline the complete 3-lead EKG placement process, from patient preparation to verifying signal quality. This routine is helpful for new nurses and seasoned professionals conducting quick telemetry setups or long-duration Holter monitor applications.

Step 1: Prepare the Skin

Before applying electrodes, start with skin preparation for ECG. First, locate the placement sites: right upper chest, left upper chest, and lower left abdomen. Trim excess hair if needed using a safety razor. Clean the area with alcohol, mild soap, and water to remove sweat, lotion, or oils. Dry the skin thoroughly. This reduces impedance and improves ECG signal quality, critical in Telemetry ECG setup.

Step 2: Place Electrodes

Place the electrodes as follows:

• RA (Right Arm): Just below the right clavicle
• LA (Left Arm): Just below the left clavicle
• LL (Left Leg): Left lower rib cage or lower abdomen

Ensure they’re not placed over bones or areas with excessive motion. Consistency in electrode positioning helps generate reliable and reproducible readings in every 3-lead ECG placement.

Step 3: Attach Lead Wires & Verify Signal

Once electrodes are secured, connect the lead wires based on your facility's color-coding standard (AHA or IEC). Gently tug to ensure the connection is snug. Power on the monitor and verify that each waveform (especially Lead II) is visible and artifact-free. This confirms that your 3-lead EKG placement is correctly executed and ready for effective patient monitoring.

Troubleshooting and Best Practices

Even with careful placement, issues can arise during 3-lead EKG placement, leading to inaccurate readings or frequent alarms. Understanding how to troubleshoot and apply best practices helps reduce errors and improve monitoring reliability. The following sections outline common mistakes, how to minimize interference, and how to evaluate ECG signal quality so you can confidently interpret waveforms and trust the data you see on the screen.

Common Placement Errors

A frequent issue in 3-lead ECG placement is confusing limb electrode positions with torso placements. Electrodes should be placed on the torso near the shoulders and lower left abdomen, not the arms and legs, especially in a Telemetry ECG setup. Another standard error is accidentally swapping the RA and LA leads, which can invert waveforms or mimic abnormal rhythms. Reviewing mnemonics and double-checking color codes helps prevent these misplacements during fast-paced shifts.

Minimizing Artifacts

Artifacts from motion, poor adhesion, or loose wires can obscure the waveform and lead to unnecessary alarms. Ensuring the skin is clean and dry improves electrode contact. It also limits external noise by managing cables to reduce movement and securing them with clips or positioning wires downward. Proper skin preparation for ECG, good electrode placement, and tidy cable routing contribute to cleaner tracings and better long-term ECG signal quality.

Checking Signal Quality

A clean signal should display the P-wave, QRS complex, and T-wave with minimal baseline wander or muscle noise. Lead II, in particular, is often preferred for rhythm interpretation due to its well-defined P-wave. If the trace appears erratic or flat, reassess the connections, recheck lead placement, and examine the electrodes for dryness or poor contact. Regularly verifying ECG signal quality helps ensure accurate interpretation and prevents false alarms in clinical settings.

Differentiating 3-Lead from Other EKG Setups

While 3-lead ECG placement is ideal for continuous rhythm monitoring, it’s essential to know when other systems are required. Multi-lead configurations provide more comprehensive cardiac views and are often used in diagnostic or critical care environments. Understanding the key differences between 3-lead, 5-lead, and 12-lead ECG setups can help clinicians choose the right tool for each situation and patient need.

5-Lead and 12-Lead Basics

The 5-lead vs 3-lead ECG comparison highlights increased diagnostic capability with more lead views. A 5-lead setup includes an additional chest lead (usually V1), allowing better detection of ischemic changes or ST elevations. The 12-lead ECG is the standard for complete cardiac assessment and is used in diagnosing myocardial infarctions or conduction abnormalities. Upgrade to these systems when a comprehensive evaluation is required, especially in chest pain or high-risk cardiac patients.

Precordial (V) Leads Overview

The 3-lead ECG lacks precordial (V) leads, which are placed directly on the chest to examine the anterior and lateral walls of the heart. These leads are essential in a 12-lead ECG for detailed ST-segment and Q-wave analysis. Their absence in a 3-lead system limits its ability to detect certain types of infarctions or subtle ischemic changes, underscoring the importance of choosing the correct configuration based on clinical goals.

Advanced Considerations

In specific clinical scenarios, standard 3-lead EKG placement may not be sufficient. Whether evaluating right-sided infarctions, conducting stress tests, or adapting for particular patient populations, modified lead configurations and placement techniques offer better diagnostic value. The sections below highlight special approaches that expand the utility of basic ECG setups in nuanced situations.

Special Lead Configurations

Alternative configurations, such as the Lewis Lead, are used to amplify atrial activity, especially useful in detecting subtle atrial flutter or fibrillation. Another example is V4R placement, which is used when right ventricular infarction is suspected, especially in the setting of an inferior STEMI. Though not part of the typical 3-lead ECG placement, understanding when and how to use these variations is valuable for nurses working in acute and cardiac care.

Non-Standard Placements

Patient factors such as age, body habitus, or medical condition often require adaptation. In pediatric patients, leads may need to be repositioned for smaller torsos, while in obese individuals, placing electrodes slightly more laterally or inferiorly can improve contact and reduce artifact. Flexibility in 3-lead ECG placement and strong foundational knowledge ensure accurate monitoring across diverse patient populations without compromising ECG signal quality.

Frequently Asked Questions (FAQ)

Q: How do you place a 3-lead ECG?

Prepare the skin by trimming hair, wiping with alcohol, and drying thoroughly. Then, electrodes in a triangle on the torso are applied using AHA (White RA, Black LA, Red LL) or IEC (Red RA, Yellow LA, Green LL) coding. Attach leads and select Lead II for optimal rhythm clarity.

Q: Why would you use a 3-lead ECG?

A 3-lead ECG is used for continuous heart rate and rhythm monitoring in telemetry, EMS, surgeries, or during Holter monitoring. It’s not diagnostic but helps detect arrhythmias in real time, making it essential in critical care and transport settings where quick cardiac assessment is needed.

Q: What is Lead 3 on an EKG?

Lead III is one of the three bipolar limb leads in Einthoven’s Triangle. It records the electrical signal from the left arm (negative) to the left leg (positive), offering an inferior view of the heart and complementing Leads I and II for basic rhythm interpretation.

Q: Where should you place the red lead when attaching the electrodes for a 3-lead ECG?

If following AHA standards, place the red lead (LL) on the lower left abdomen—“fire” in the mnemonic. If using IEC standards, red represents the right arm (RA), placed below the right clavicle. Always confirm your system before positioning leads to ensure accurate readings.

Q: Where is the V3 lead placed?

V3 is not part of a 3-lead ECG. It is used in a 12-lead ECG and is positioned midway between V2 and V4 on the chest. Since 3-lead setups don’t include precordial leads, V3 placement is not applicable in this configuration.

Q: What is the correct placement of ECG leads?

For 3-lead monitoring, place all electrodes on the torso: RA below the right clavicle, LA below the left clavicle, and LL on the lower left abdomen. Avoid limb positions that can introduce motion artifacts and compromise ECG signal quality during continuous monitoring.

Wrapping up

Mastering 3-lead EKG placement is a fundamental skill for nurses and healthcare professionals involved in cardiac monitoring. From understanding Einthoven’s triangle to applying proper skin preparation for ECG, every step contributes to reliable, artifact-free readings that support quick clinical decisions. While limited compared to multi-lead systems, 3-lead ECGs remain vital in telemetry, transport, and arrhythmia detection. Consistency, accuracy, and familiarity with placement standards ensure better patient care and fewer misinterpretations.
